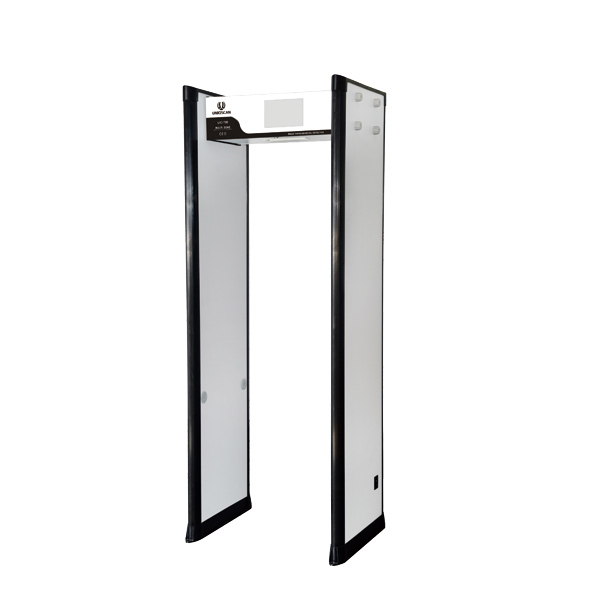

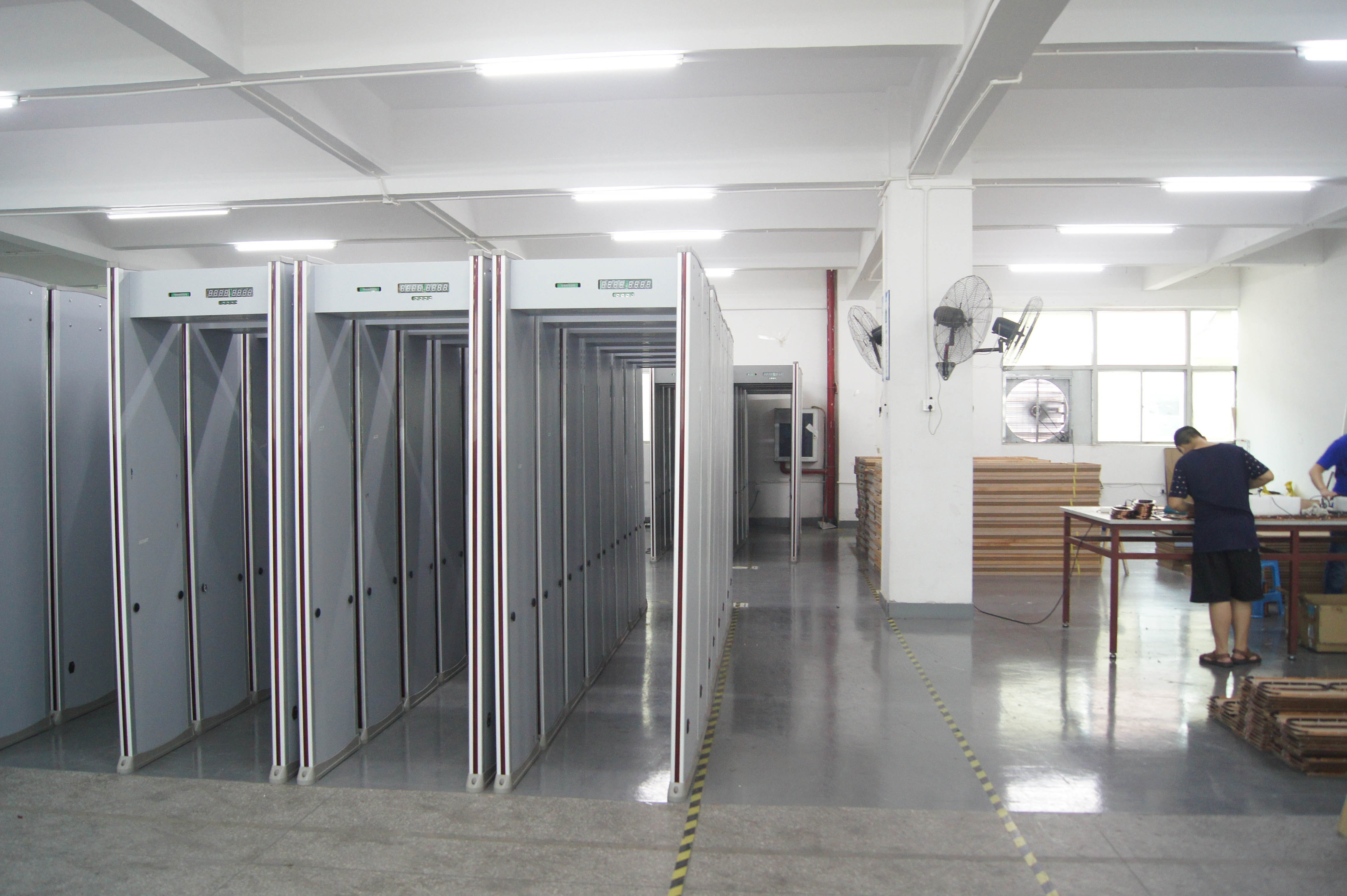

UC700 Walk through metal detector (6/8/12/16/18/24 zones)
Parameters

Power Supply

AC85V-264V / 47.5-60Hz

Working temperature
-20℃--+50℃
Working Frequency
4KHZ—8KHZ

Standard External size

2230mm(H)X830mm(W)X730mm(D)
Standard Internal size
2000mm(H)X700mm(W)X605mm(D)

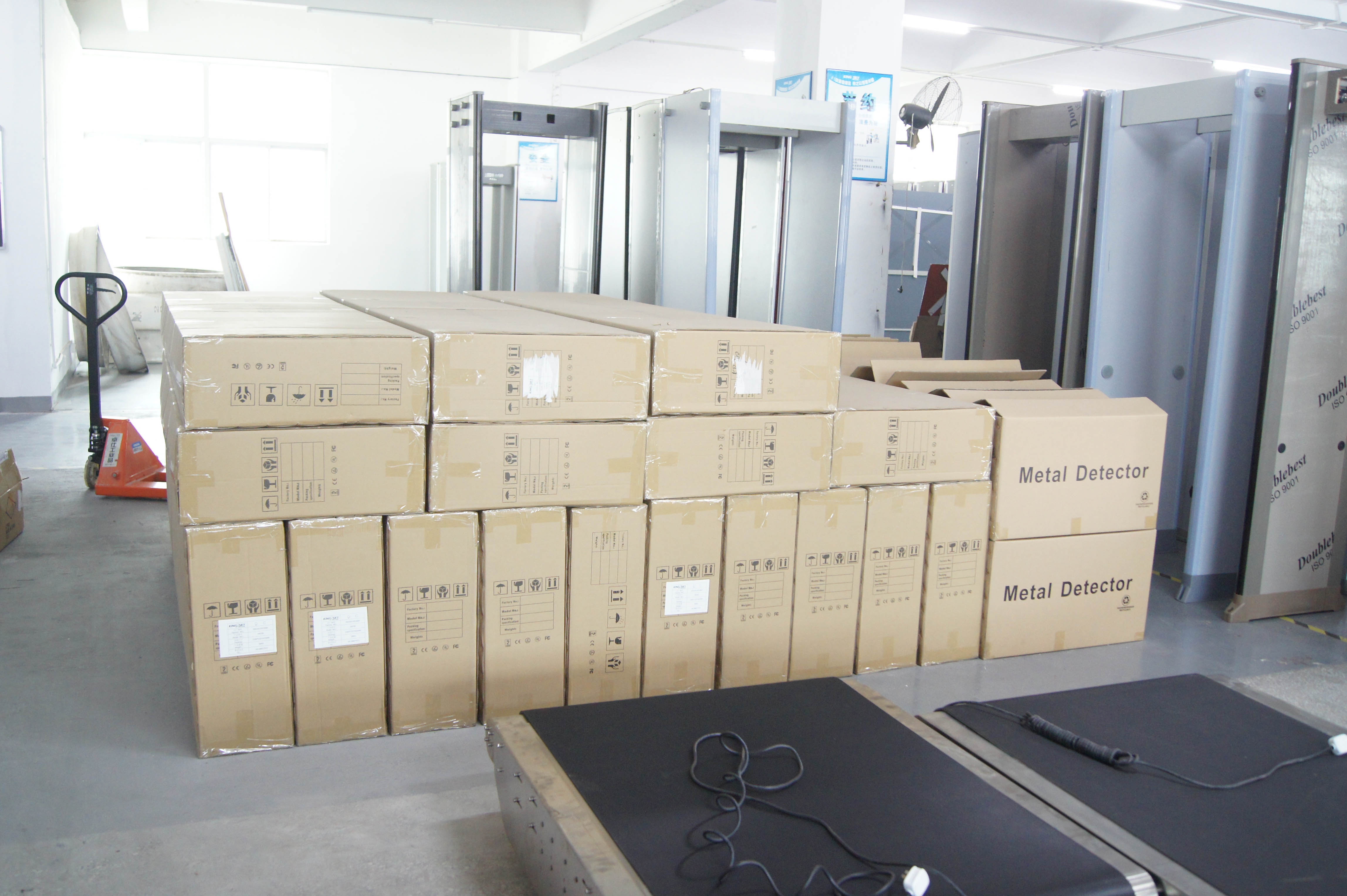

Package size for door panels
 2260*650*260mm *1ctn
Package size for control unit
780*390*250 mm*1ctn
Gross weight
 75KG

Characteristic & Function

6-18 detecting zones, Simultaneous alarm from multi- zones

Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable

5.7 inch LCD screen

Infrared remote control

Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.

Automatically count passengers and alarm times

Alarm strength indicator on control panel

Password protection, only the authorized person can operate.

Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction

Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

Using high density fireproof material

Program Self-diagnostic when power on, no need initial or periodic calibration

Modularization design, easy for maintenance and replacement

Sensitivity Test piece: One yuan Coin, omnidirectional detection

4-8 hours backup battery (Option)

Use domain

Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc
